110°
Opening Angle
BLUMOTION
Soft Close
3-Way
Adjustment
CLIP top
System

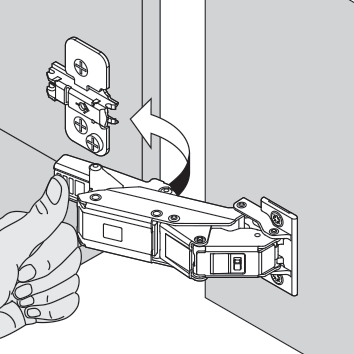

The CLIP top BLUMOTION 110° hinge for thin doors is specifically engineered for doors with thicknesses from 8 to 14 mm. Featuring integrated BLUMOTION soft-close damping, this hinge delivers smooth, silent closing every time. The EXPANDO T boss system enables fast, tool-free mounting.
Ideal for thin panel doors, glass doors with aluminum frames, and modern cabinet applications where slim-profile design is essential. Compatible with frameless cabinets. Available in Nickel plated and Onyx Black finishes.
Technical Specifications
System
CLIP top BLUMOTION (Thin Door)
Opening Angle
110°
Cup Diameter
35 mm
Drilling Depth
13 mm
Door Thickness
8–14 mm
Application Types
Overlay
Mounting
EXPANDO T

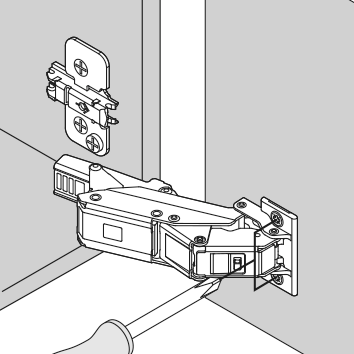

Adjustment
3D (height, depth, lateral)
Finish Options
Nickel plated, Onyx Black
Applications
Thin panel cabinet doors (8–14 mm) • Glass doors with aluminum frames • MDF-wrapped thin doors • Modern frameless cabinetry • Kitchen, bathroom & closet applications
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON
☎ +1 (905) 678-8464
🛡 Blum Lifetime Warranty
Specifications
| Finish | Nickel, Onyx Black |
| Brand | Blum |
| Fixing Type | Expanding Dowel |
| Overlay | Full Overlay |
| Closing Mechanism | Soft Close |
| Door Thickness | 8 to 14mm |
