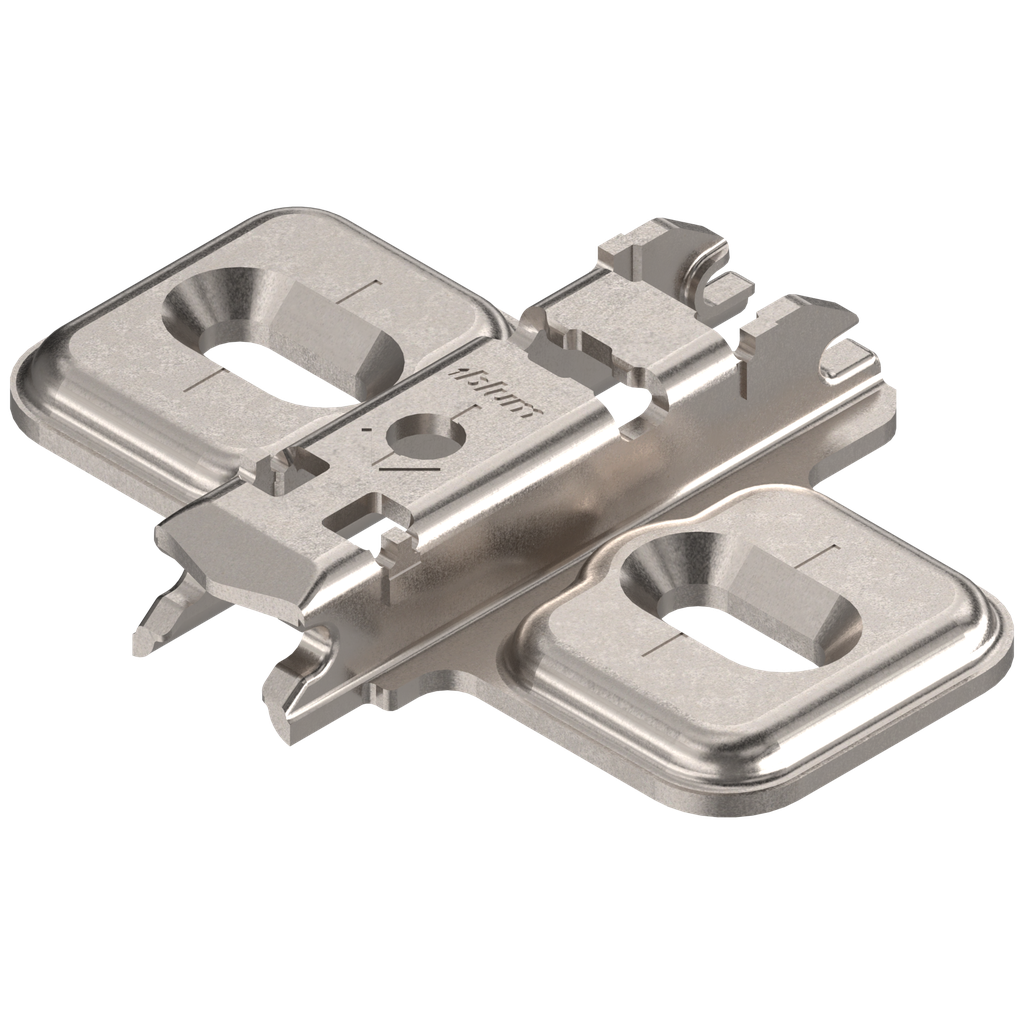

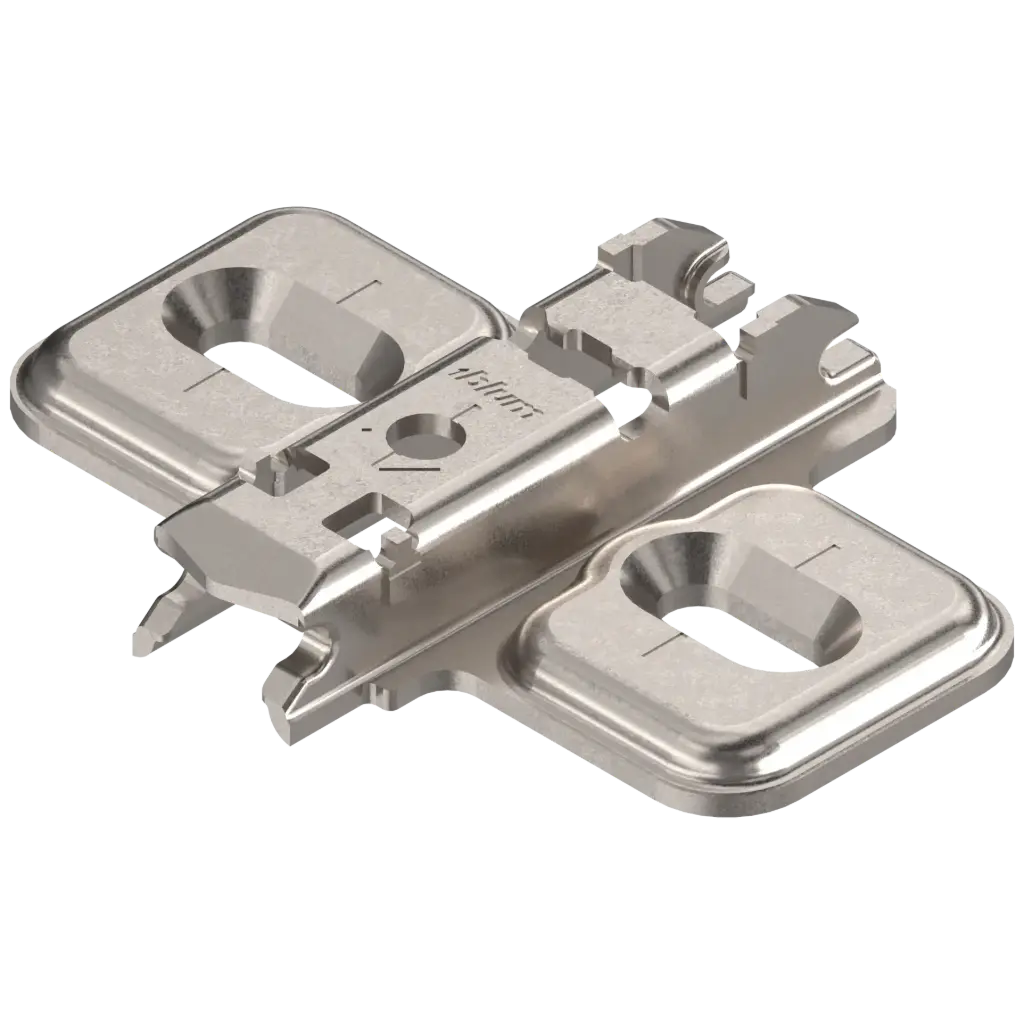

CLIP Mounting Plate13 VariantsCruciform PatternMultiple HeightsCLIP top System
Blum CLIP mounting plates provide the essential base for all CLIP top and CLIP top BLUMOTION hinges. Available in 13 variants covering three mounting methods (screw-on, pre-mounted euro screws, and expando dowels) and multiple height options (0mm, 3mm, 6mm, 9mm, 18mm) to accommodate different door overlay requirements and cabinet constructions.
| Compatible Hinges | All CLIP top & CLIP top BLUMOTION |
| Mounting Methods | Screw-On (Chipboard) · Pre-Mounted Euro Screws · Expando Dowels |
| Available Heights | 0 mm · 3 mm · 6 mm · 9 mm · 18 mm |
| Materials | Steel (173L/174E series) · Zinc (175H series) |
| Pattern | Cruciform mounting pattern |
| Finish | Nickel Plated |
Technical Specifications
SystemCLIP top / CLIP
TypeCruciform Mounting Plate
MountingScrew-on, INSERTA, EXPANDO
MaterialSteel
FinishNickel Plated
AdjustmentHeight + Depth
BrandBlum
Applications
- Face Frame Cabinets: Use screw-on (175H7xxx) or euro-screw (175H9xxx) mounting plates
- Frameless Cabinets: Use expando dowel (174Exxxx) mounting plates for 5mm system holes
- Retrofit Projects: Use screw-on plates (173L6100) for quick installation with chipboard screws
- Height Adjustment: Select 3mm, 6mm, 9mm, or 18mm spacer heights for precise door alignment
Compatible Products
Blum CLIP Mounting Plates — Precision-engineered in Austria. Available at Paco Hardware.
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Specifications
| Fixing Type | Screw-On, Euro-Screws, Expando Dowels, Pre-Mounted Euro Screws |
| Material | Steel, Zinc |
| Plate Height | 3 mm, 0 mm, 6 mm, 9 mm, 18 mm |
| Brand | Blum |
| Finish | Nickel |
