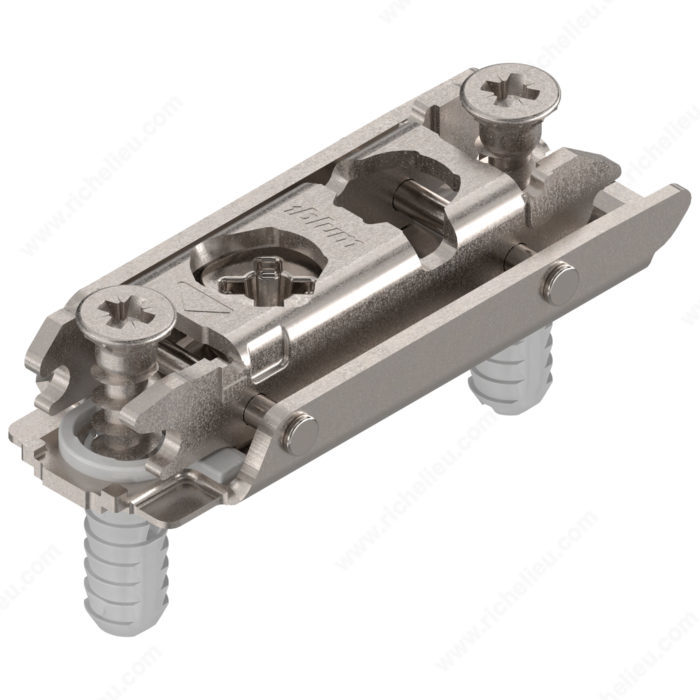

Horizontal Mounting Plates for Blum Hinges

Blum horizontal CLIP mounting plates are the essential base component for every CLIP top and CLIP top BLUMOTION hinge installation. These steel plates mount directly to the cabinet side panel and provide the snap-on anchor point for the hinge arm — simply press the hinge onto the plate until it clicks into place, no tools required.

Available in multiple configurations to suit different installation methods: screw-on plates (175H series) attach with chipboard screws for traditional face-frame or frameless cabinets, while knock-in plates (177H series) feature press-fit dowels or EXPANDO split dowels for quick, precise dowel-based assembly. All plates include cam-type height adjustment for fine-tuning the door position after installation.

Offered in Nickel plated and Onyx black finishes to match your hinge and cabinet aesthetic. The 0 mm designation indicates a standard (no additional distance) plate — other distances are available for applications requiring an offset between the hinge cup and the cabinet side.

Required for all Blum CLIP top and CLIP top BLUMOTION hinge installations. Suitable for face-frame and frameless (full-overlay, half-overlay, and inset) cabinetry in kitchens, bathrooms, wardrobes, and commercial millwork. Choose screw-on for traditional installations or knock-in / EXPANDO for dowel-based assembly lines.
