155° OpeningZero ProtrusionCLIP Mounting

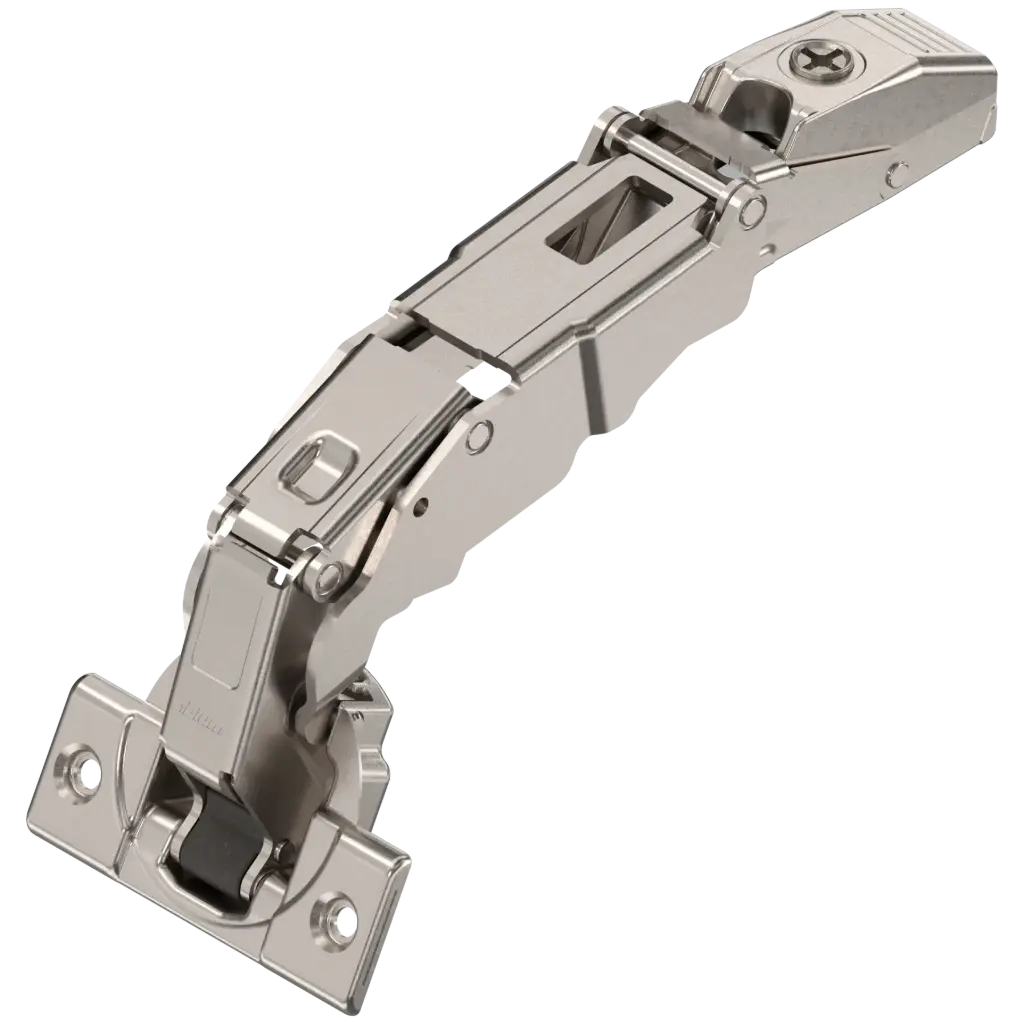

The Blum CLIP Top 155° zero protrusion hinge combines a generous wide opening angle with a unique design that eliminates hinge cup protrusion inside the cabinet. When closed, the hinge arm folds completely flat, maximizing usable interior space. This makes it ideal for narrow cabinets, pull-out storage systems, and internal fittings where every millimeter of clearance counts.
| Opening Angle | 155° |
| Key Feature | Zero Protrusion (flush when closed) |
| Mounting | Screw-On |
| Adjustment | 3-Dimensional |
| Cup Diameter | 35 mm |
Technical Specifications
SystemCLIP top BLUMOTION
Opening Angle155°
Closing MechanismSoft Close
Cup Diameter35 mm
Drilling Depth13 mm
Door Thickness16-24 mm
Application TypesZero Protrusion
MountingScrew-on, INSERTA, EXPANDO
Adjustment3D (height, depth, lateral)
Finish OptionsNickel Plated
Applications
- Narrow cabinets with internal pull-outs
- Cabinets with interior organizer systems
- Applications requiring maximum interior clearance
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Blum® — Genuine Austrian-made hardware. Order by 3 PM for same-day dispatch.
Specifications
| Fixing Type | Screw-On, Toolless |
| Finish | Nickel, Onyx Black |
| Brand | Blum |
| Overlay | Full Overlay |
| Closing Mechanism | Free Swing |
