170° OpeningWide AngleCLIP Mounting

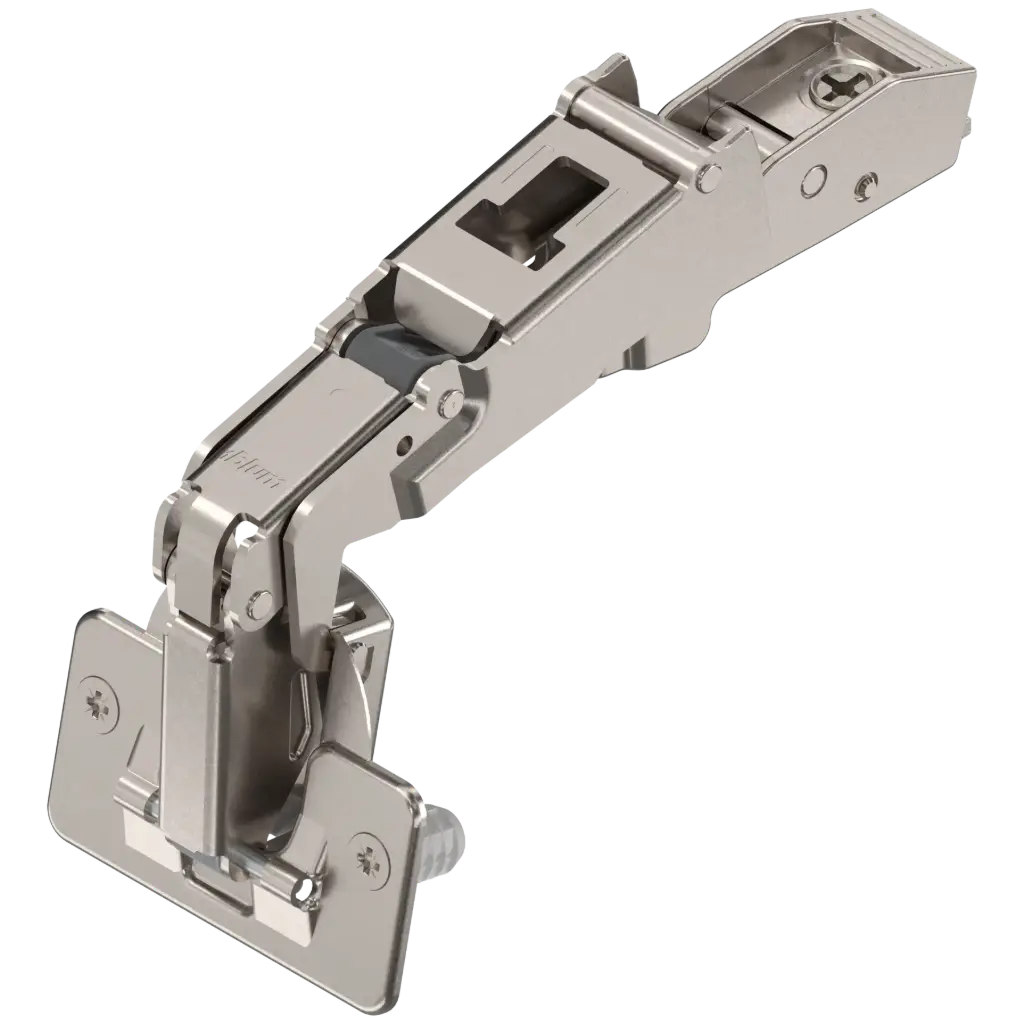

The Blum CLIP Top 170° wide angle hinge provides maximum door opening for applications that demand full access to cabinet interiors. The nearly flat-against-cabinet opening angle makes it ideal for corner cabinets, pull-out storage, and situations where adjacent doors or walls require extended clearance. Features the reliable CLIP tool-free mounting system with three-dimensional adjustment.
| Opening Angle | 170° |
| Overlay Options | Full Overlay, Half Overlay, Inset |
| Mounting Types | Screw-On, Dowel, Inserta |
| Adjustment | 3-Dimensional |
| Cup Diameter | 35 mm |
Technical Specifications
SystemCLIP top
Opening Angle170°
Closing MechanismStandard (no soft-close)
Cup Diameter35 mm
Drilling Depth13 mm
Door Thickness16-24 mm
Application TypesOverlay
MountingScrew-on, INSERTA, EXPANDO
Adjustment3D (height, depth, lateral)
Finish OptionsNickel Plated
Applications
- Corner cabinets requiring wide door clearance
- Cabinets adjacent to walls or appliances
- Pull-out storage with full access needs
- Entertainment centers and display cabinets
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Blum® — Genuine Austrian-made hardware. Order by 3 PM for same-day dispatch.
Specifications
| Closing Mechanism | Spring Closing, Free Swing |
| Fixing Type | Dowel, Screw-On, Toolless |
| Overlay | Full Overlay, Half Overlay |
| Brand | Blum |
| Finish | Nickel |
