107° OpeningStandard HingeCLIP Mounting

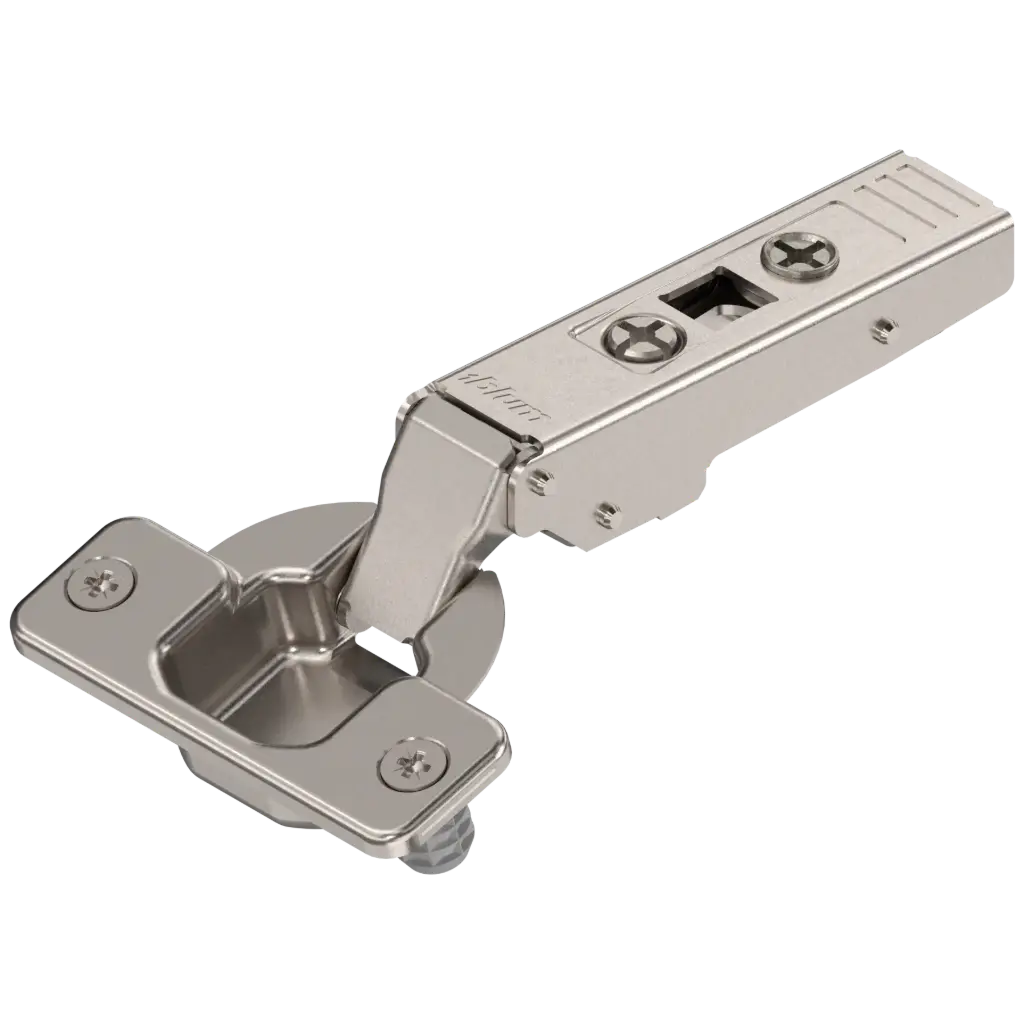

The Blum CLIP Top standard 107° hinge is the versatile workhorse of the CLIP Top hinge family. Designed for frameless cabinets, it delivers smooth, reliable operation with a generous 107° opening angle. The tool-free CLIP mounting system allows quick snap-on installation and three-dimensional adjustment for a perfect fit every time. Available in full overlay, half overlay, and inset configurations.
| Opening Angle | 107° |
| Overlay Options | Full Overlay, Half Overlay, Inset |
| Mounting Types | Screw-On, Dowel, Inserta |
| Adjustment | 3-Dimensional |
| Cup Diameter | 35 mm |
| Cabinet Type | Frameless (Face Frame with adapter) |
Technical Specifications
SystemCLIP top
Opening Angle107°
Closing MechanismStandard (no soft-close)
Cup Diameter35 mm
Drilling Depth13 mm
Door Thickness16-24 mm
Application TypesOverlay, Half Overlay, Inset
MountingScrew-on, INSERTA, EXPANDO
Adjustment3D (height, depth, lateral)
Finish OptionsNickel Plated
Applications
- Kitchen base and wall cabinets
- Bathroom vanities and medicine cabinets
- Wardrobes and closet systems
- Office furniture and storage units
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
Blum® — Genuine Austrian-made hardware. Order by 3 PM for same-day dispatch.
Specifications
| Fixing Type | Dowel, Screw-On, Toolless |
| Overlay | Full Overlay, Half Overlay, Inset |
| Brand | Blum |
| Finish | Nickel |
