Adjusting CamCLIP Mounting SystemCruciform PatternNickel & Onyx Black

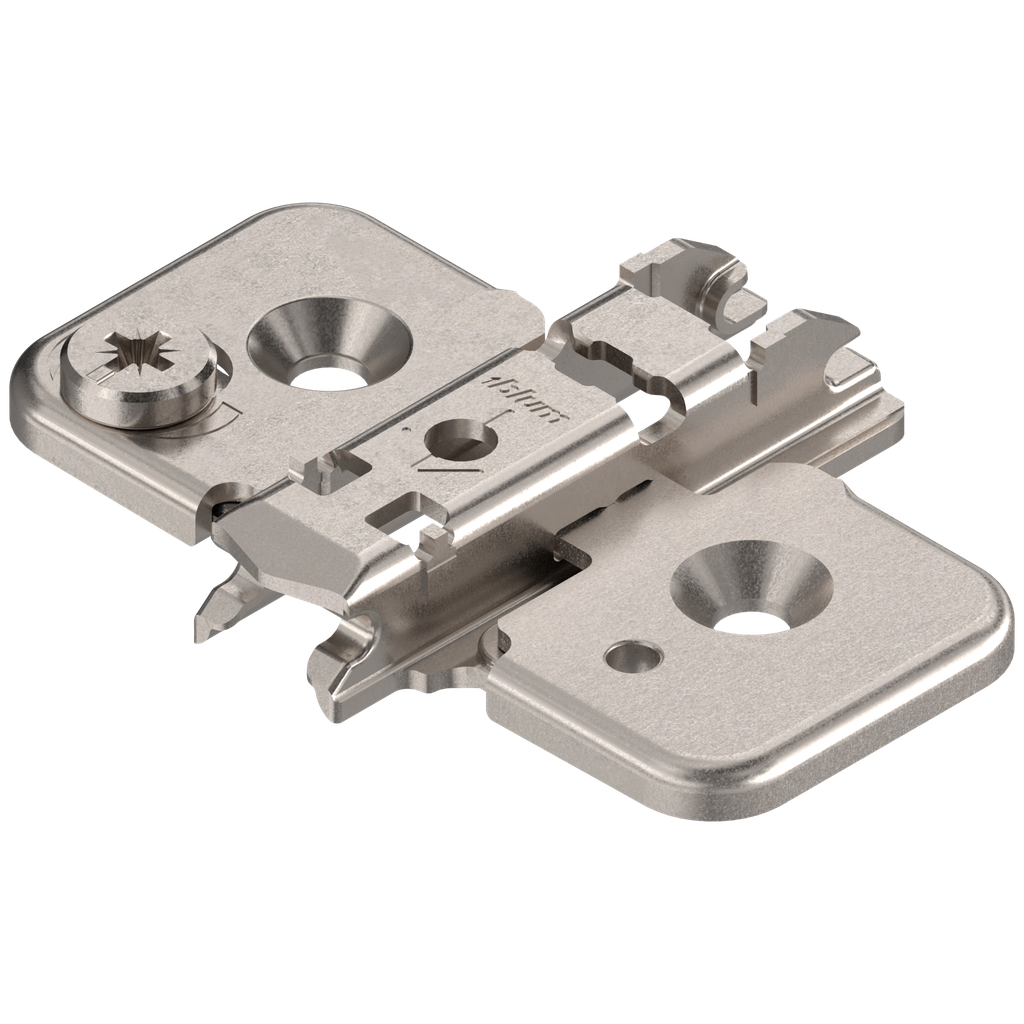

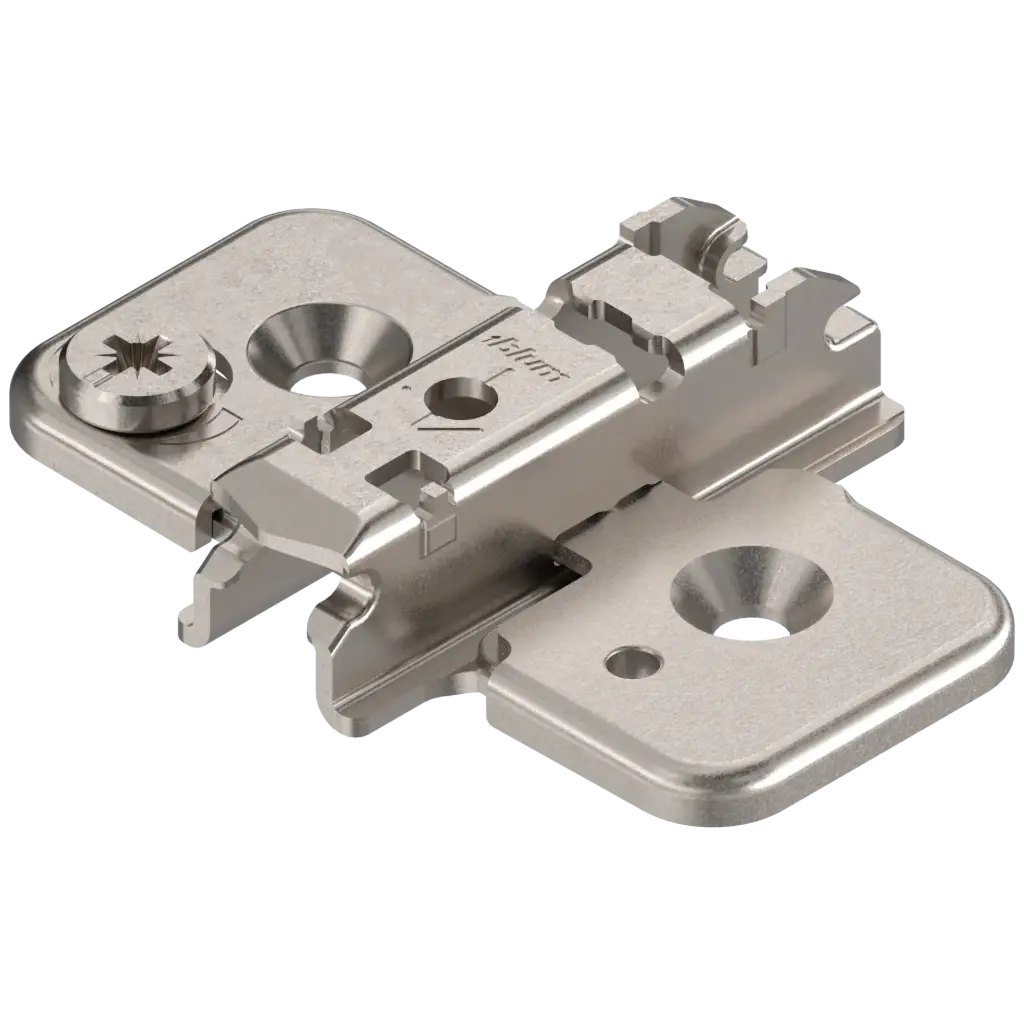

Blum CLIP mounting plates with adjusting cam (HA: cam) provide precise door alignment after installation. The cam mechanism allows fine horizontal adjustment, ensuring perfect gap alignment across cabinet doors. Available in screw-on (173H) and EXPANDO split dowel (174H) versions, in Nickel Plated and Onyx Black finishes.
| Technical Specifications | |
|---|---|
| Brand | Blum |
| Product Type | CLIP Mounting Plate with Adjusting Cam |
| Mounting Pattern | Cruciform |
| Height Adjustment (HA) | Cam |
| Mounting Types | Screw-On (173H) · EXPANDO Split Dowels (174H) |
| Material | Steel |
| Finishes | Nickel Plated · Onyx Black |
| Height Settings | 0 mm · 3 mm |
| Compatibility | All Blum CLIP top & CLIP top BLUMOTION Hinges |
Applications
- Face frame and frameless cabinet construction
- Kitchen, bathroom, and furniture cabinetry
- Doors requiring precise horizontal cam adjustment
- Onyx Black finish for modern dark-hardware designs
- EXPANDO dowels for tool-free installation in 5 mm holes
Compatible Products
🇨🇦 Ships across Canada from Mississauga, ON • 📞 +1 (905) 678-8464 • 🛡 Blum Lifetime Warranty
© Blum Inc. • All specifications subject to change • Distributed by Paco Hardware
Specifications
| Fixing Type | Screw-On, Expando Dowels |
| Plate Height | 3 mm, 0 mm |
| Finish | Nickel, Onyx Black |
| Brand | Blum |
