The Blum CLIP top BLUMOTION −30° III angled hinge is specifically designed for cabinets with side panels angled at −30° from the standard position. Integrated BLUMOTION soft-close damping ensures every door closure is smooth and silent, protecting cabinet contents and extending hinge life.
With a generous 110° opening angle and maximum overlay cranking, this hinge provides excellent access to cabinet interiors on angled installations. Ideal for trapezoid corner cabinets, angled base units, and custom cabinetry where panels meet at negative angles. The CLIP top snap-on system enables tool-free mounting.

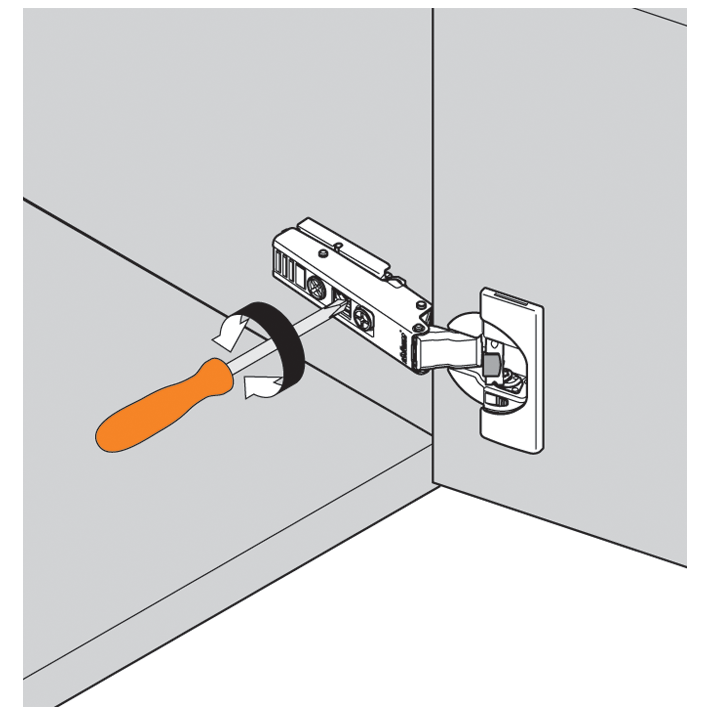

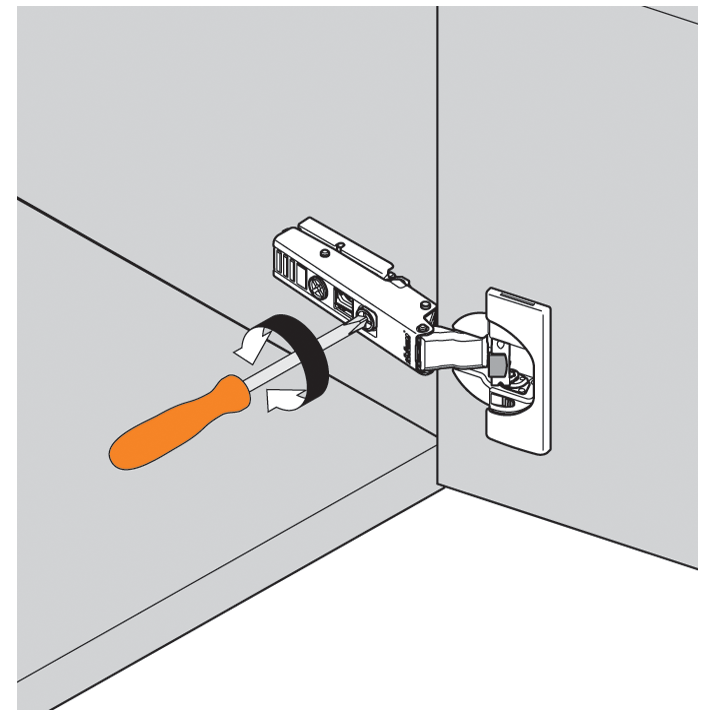

Three-dimensional adjustment (±2 mm side, +3/−2 mm depth) ensures precise door alignment on challenging angled configurations. Available with screw-on or INSERTA boss options. The steel boss and nickel-plated finish deliver lasting durability and corrosion resistance.
| Technical Specifications | |
|---|---|
| Opening Angle | 110° |
| Cabinet Angle | −30° |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Max. overlay |
| Boss Assembly | Screw-on / INSERTA |
| Boss Material | Steel |
| Side Adjustment | ± 2 mm |
| Depth Adjustment | + 3 / − 2 mm (spiral screw) |
| Finish | Nickel plated |
Applications
Designed for cabinets with −30° angled side panels, including trapezoid corner cabinets, angled base units, and custom cabinetry where panels converge at negative angles. The maximum overlay cranking ensures proper door alignment and a flush closed appearance on these specialized configurations.
Compatible Products
✅ In stock • Ships within 1–2 business days • 📞 1-800-PACO • Authorized Blum Dealer • 1-Year Warranty
Specifications
| Fixing Type | Screw-On, Toolless |
| Brand | Blum |
| Finish | Nickel |
| Overlay | Full Overlay |
| Hinge Opening Angle | -30° |
| Closing Mechanism | Spring Closing |
