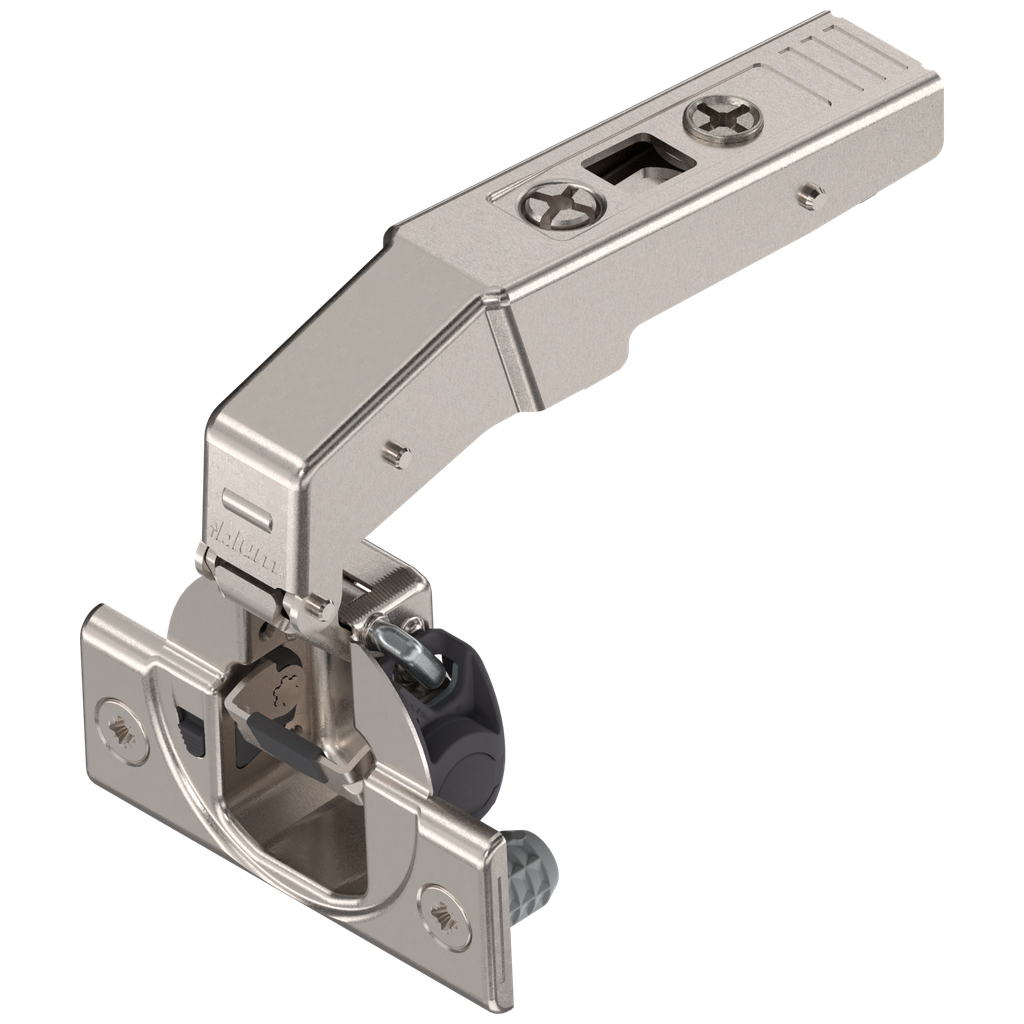

The Blum CLIP top BLUMOTION blind corner hinge is specially designed for blind corner cabinet applications. With a 95° opening angle and integrated BLUMOTION soft-close damping, it ensures smooth, silent closing every time. The inset application positions the door flush with the cabinet face frame.

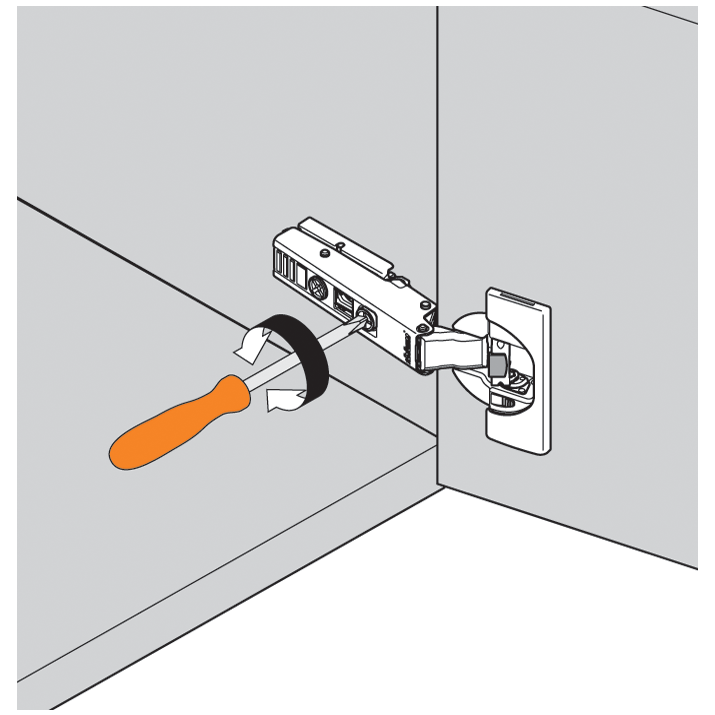

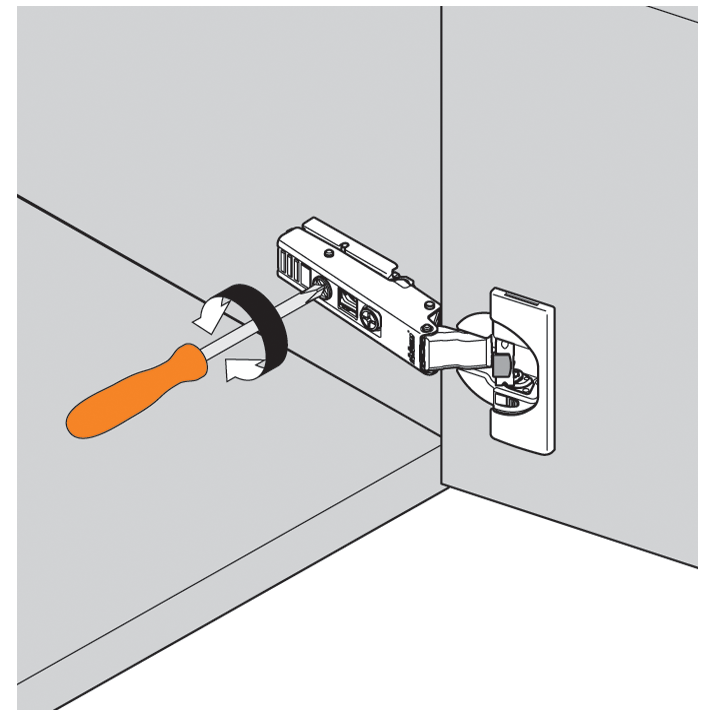

Available with knock-in (Dowel) or tool-free INSERTA boss assembly, this hinge provides reliable, long-lasting performance in demanding blind corner configurations. The steel boss and 3-dimensional adjustment allow precise door alignment after installation.
Part of the CLIP top system, this blind corner hinge is compatible with all standard Blum CLIP mounting plates and accessories, enabling a unified hinge platform across your entire kitchen or furniture project.
| Technical Specifications | |
|---|---|
| Opening Angle | 95° |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Inset (blind corner) |
| Boss Assembly | Knock-in (Dowel) or INSERTA (tool-free) |
| Boss Material | Steel |
| Side Adjustment | ± 2.5 mm |
| Depth Adjustment | ± 1 mm (spiral screw) |
| Finish | Nickel plated |
Applications
Ideal for blind corner base cabinets and wall cabinets where conventional hinges cannot provide proper clearance. Designed for frameless (European-style) cabinetry with 35 mm cup boring. Commonly used in L-shaped and U-shaped kitchen layouts where corner access is critical.
Compatible Products
Free shipping on orders over $99 across Canada • Call us: 1-800-267-2217 • Lifetime warranty on all Blum products
Specifications
| Fixing Type | Dowel, Inserta |
| Brand | PACO |
