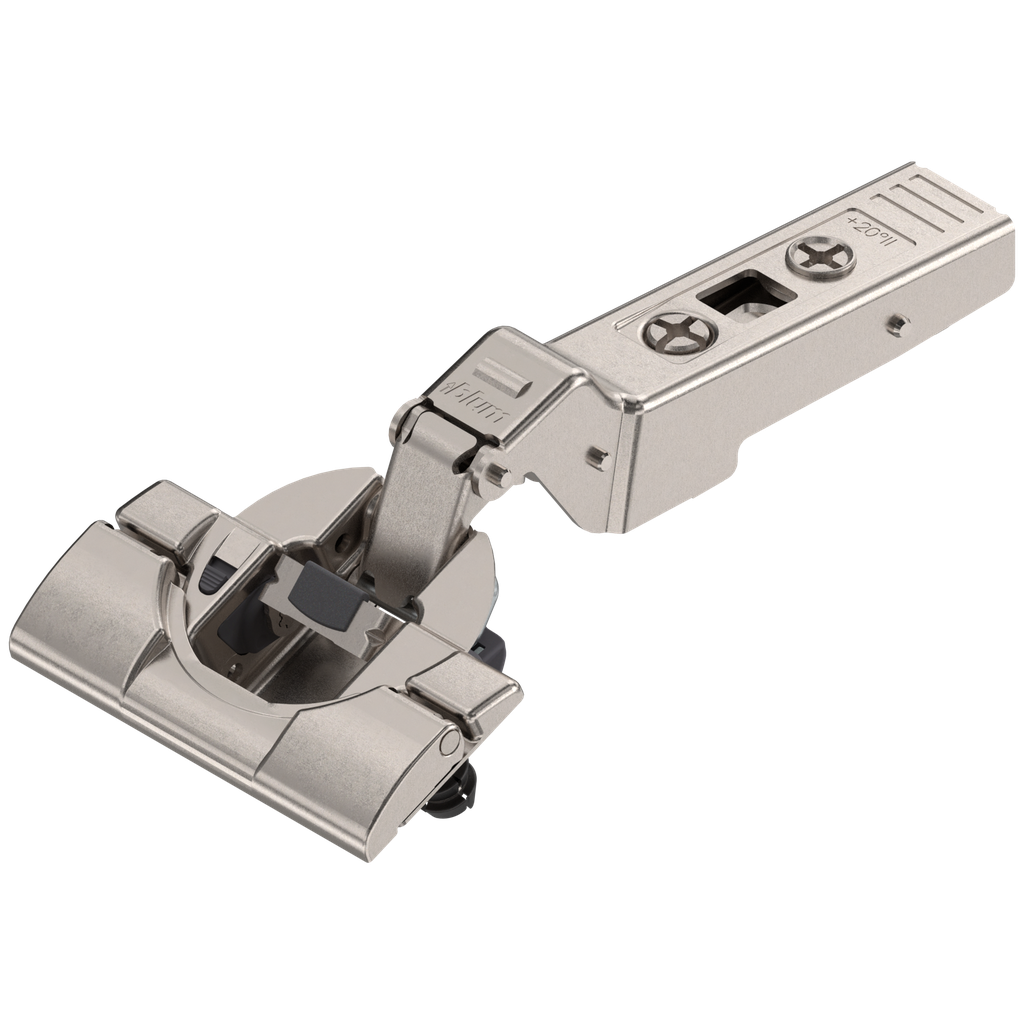

The Blum CLIP top BLUMOTION 20° II angled hinge is purpose-built for cabinets with side panels angled at 20° from the standard 90° orientation. With integrated BLUMOTION soft-close damping, doors close gently and silently every time, protecting both the cabinet and its contents.
Designed for overlay applications, this hinge delivers a 95° opening angle optimized for angled cabinet configurations such as corner cabinets, diagonal wall units, and specialty angled installations. The CLIP top platform ensures tool-free snap-on mounting for fast, efficient installation.

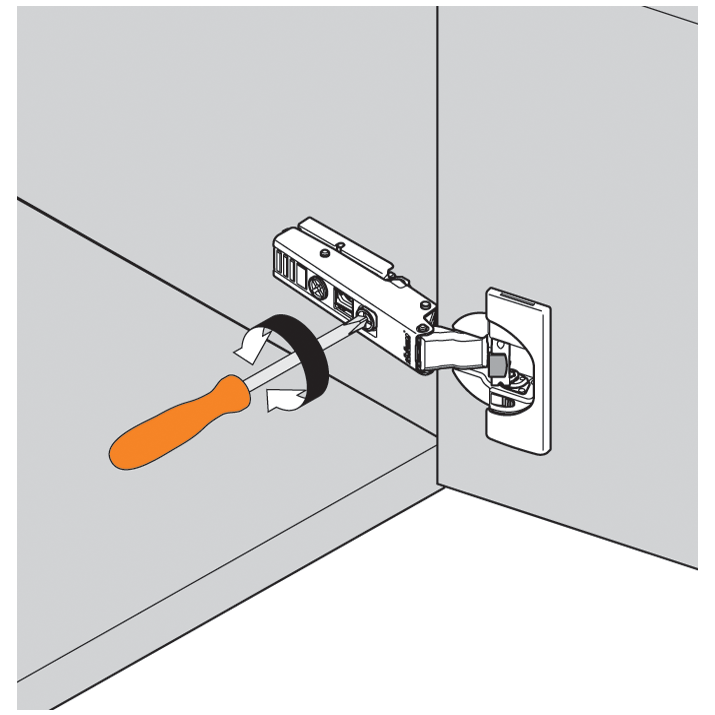

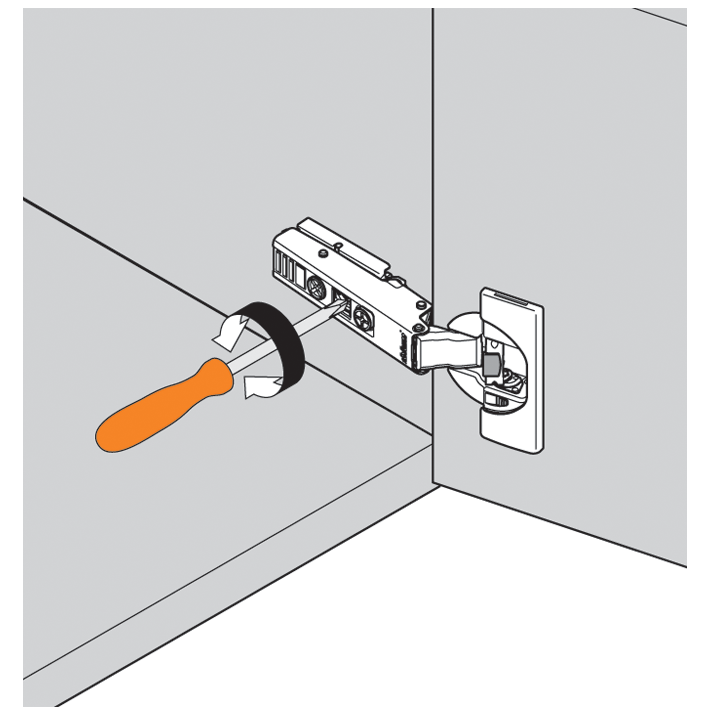

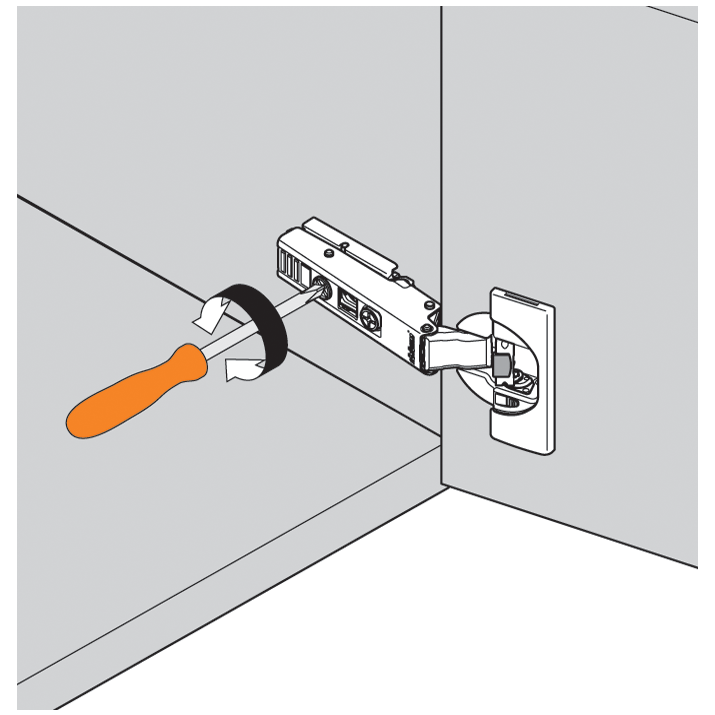

Three-dimensional adjustment allows precise door alignment even on non-standard angled panels. The steel screw-on boss provides robust, reliable attachment to the door, and the nickel-plated finish ensures long-lasting corrosion resistance in any environment.
| Technical Specifications | |
|---|---|
| Opening Angle | 95° |
| Cabinet Angle | 20° |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Overlay |
| Boss Assembly | Screw-on |
| Boss Material | Steel |
| Side Adjustment | ± 1.8 mm |
| Depth Adjustment | ± 2 mm (spiral screw) |
| Finish | Nickel plated |
Applications
Specifically designed for cabinets with 20° angled side panels, including diagonal corner wall cabinets, angled end cabinets, and specialty kitchen or bathroom installations where panels meet at non-standard angles. The overlay cranking ensures proper door positioning on angled configurations.
