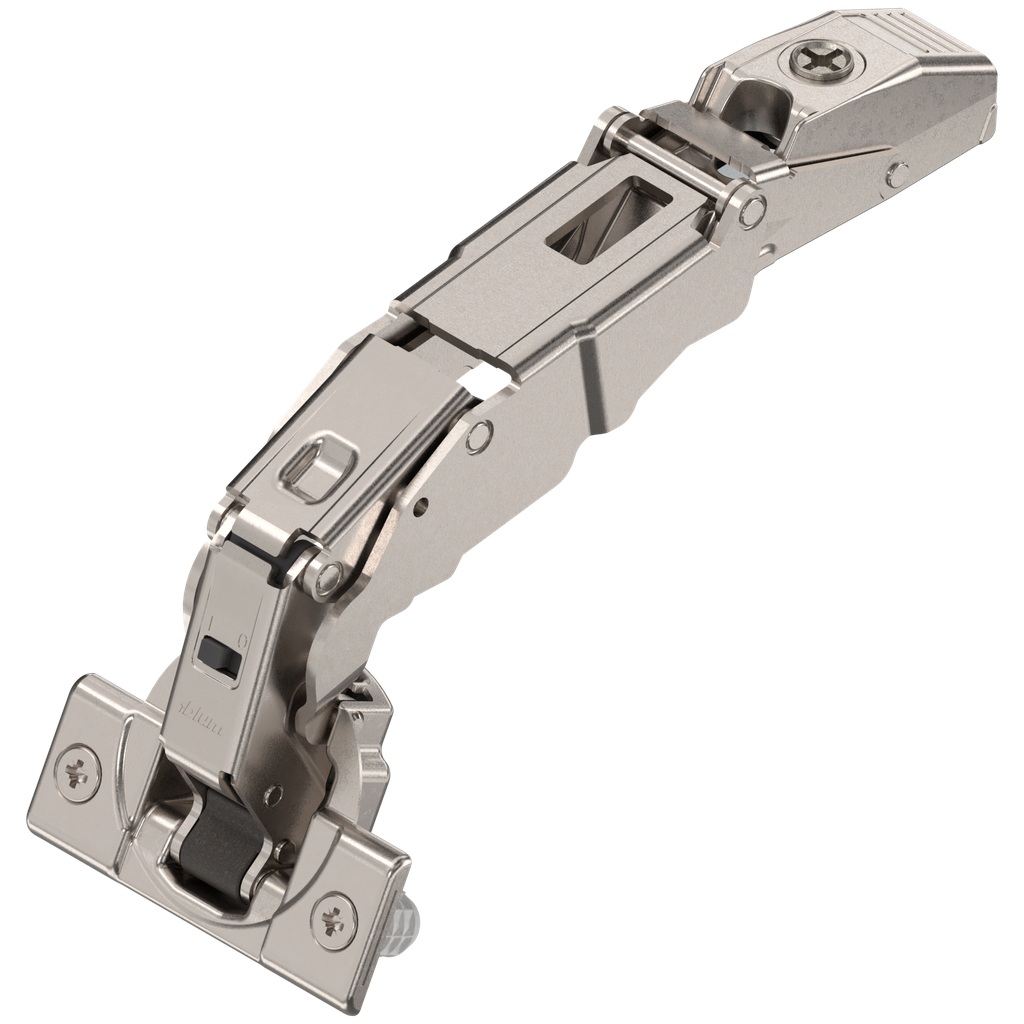

The Blum CLIP top BLUMOTION 155° wide angle hinge is engineered for zero protrusion applications where the door must not extend beyond the cabinet side panel when opened. With integrated BLUMOTION soft-close damping, every closing action is gentle and silent.
The expansive 155° opening angle provides exceptional access to cabinet interiors, making it ideal for walk-in closets, pantries, and applications where adjacent cabinets or walls require zero protrusion clearance. The overlay cranking ensures a flush, professional appearance when closed.

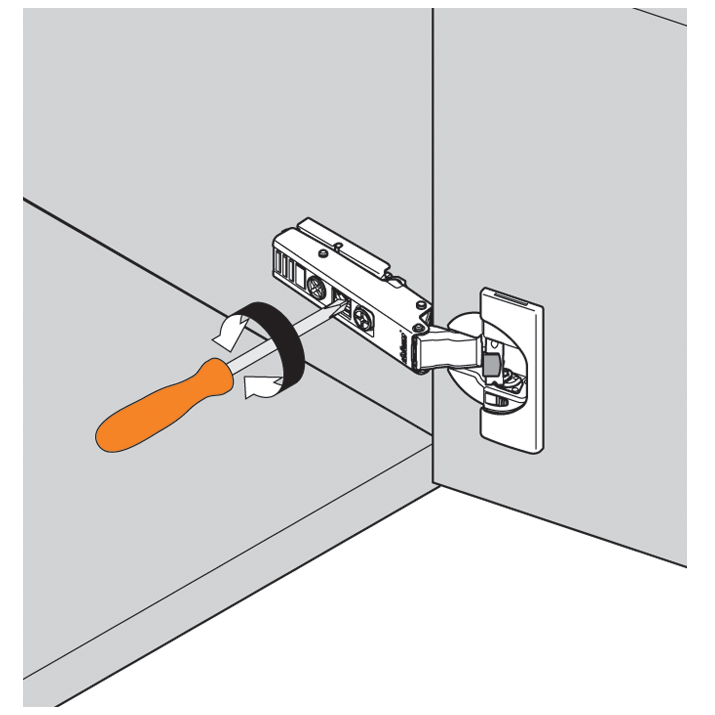

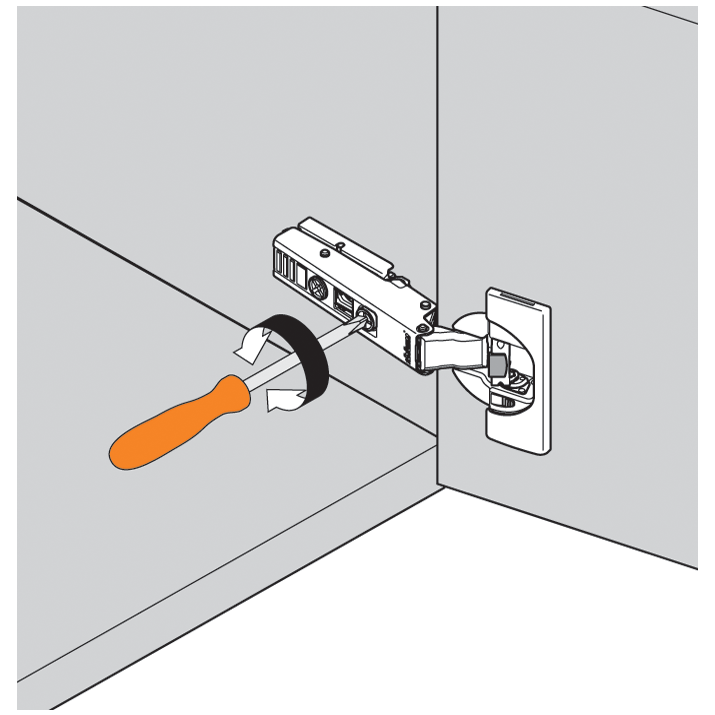

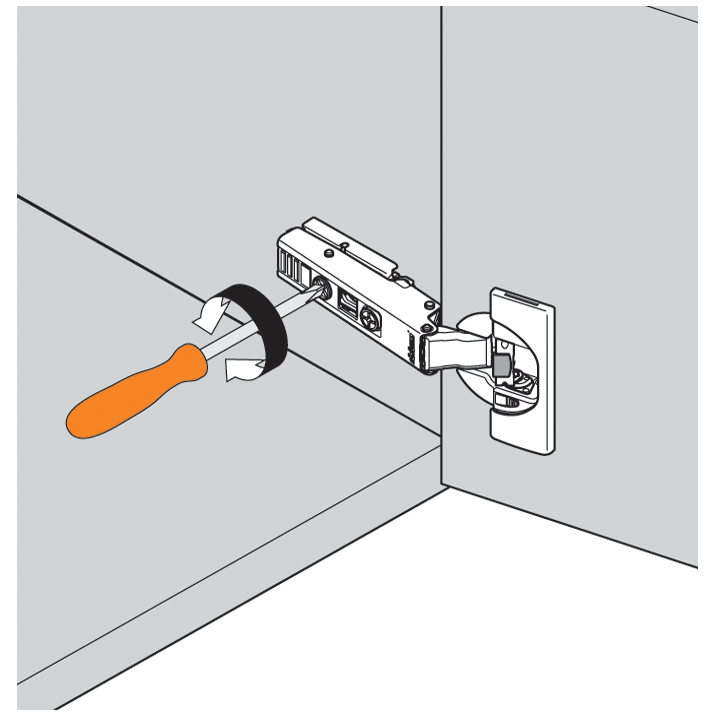

Built on the proven CLIP top platform with tool-free mounting via the CLIP mechanism, this hinge features three-dimensional adjustment for perfect door alignment. Available with screw-on, knock-in, or INSERTA boss options to match your preferred mounting method.
| Technical Specifications | |
|---|---|
| Opening Angle | 155° |
| Closing Mechanism | BLUMOTION integrated soft-close |
| Cup Diameter | 35 mm |
| Door Application | Overlay (zero protrusion) |
| Boss Assembly | Screw-on / Knock-in / INSERTA |
| Boss Material | Steel |
| Side Adjustment | ± 2 mm |
| Depth Adjustment | + 3 / - 2 mm (spiral screw) |
| Finish | Nickel plated |
Applications
Ideal for walk-in closets, pantry cabinets, built-in wardrobes, and any application where the door must not protrude beyond the cabinet side panel when open. The 155° wide opening angle ensures maximum interior access while maintaining zero protrusion clearance for adjacent cabinets, walls, or passageways.
Compatible Products
✅ In stock • Ships within 1–2 business days • 📞 1-800-PACO • Authorized Blum Dealer • 1-Year Warranty
Specifications
| Fixing Type | Dowel, Screw-On, Toolless |
| Brand | Blum |
| Finish | Nickel |
| Closing Mechanism | Soft Close |
| Hinge Opening Angle | +155° |
| Door Position | Full Overlay |
