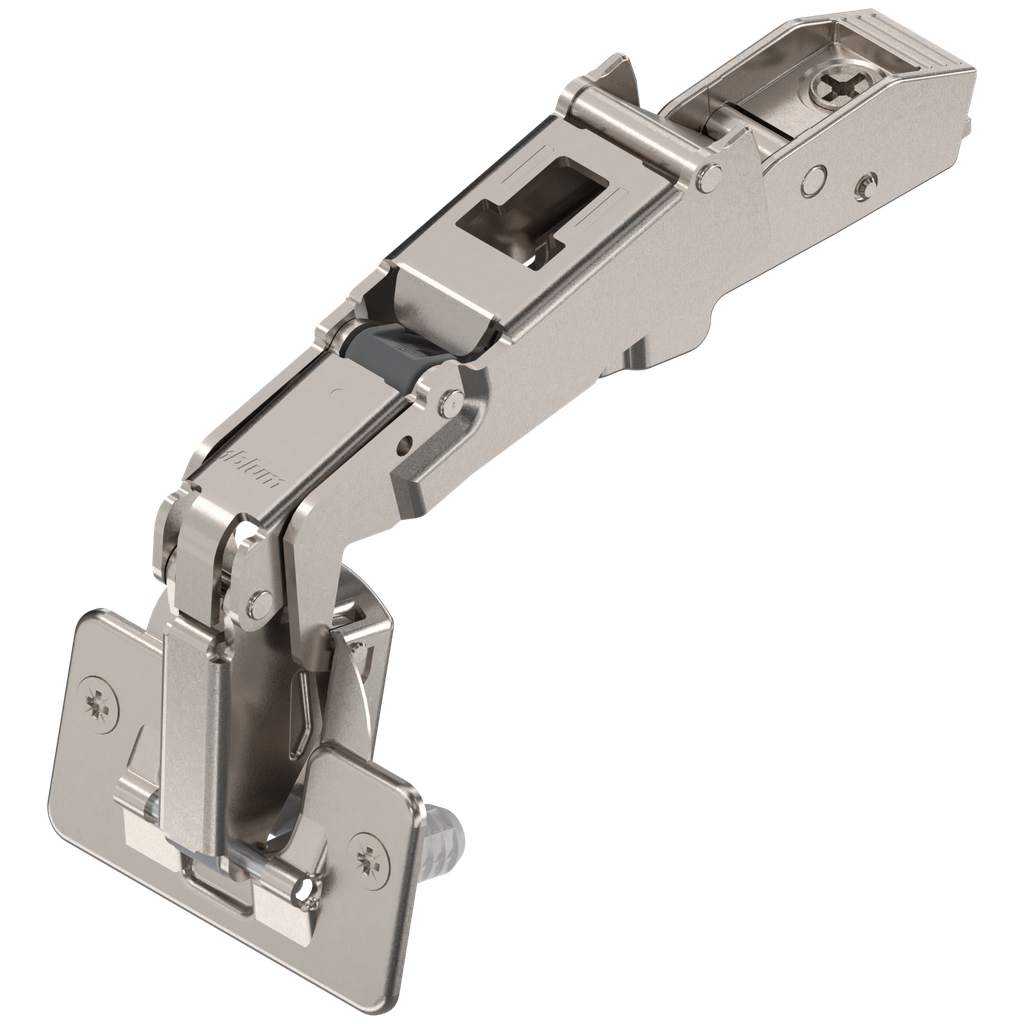

The Blum CLIP top 170° wide angle hinge opens doors a full 170 degrees, providing maximum access to cabinet interiors. Designed for overlay applications on frameless cabinets, this hinge is ideal for pantry cabinets, corner solutions, and any installation where full door clearance is essential.

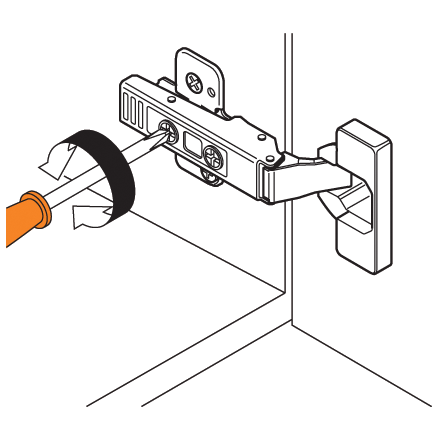

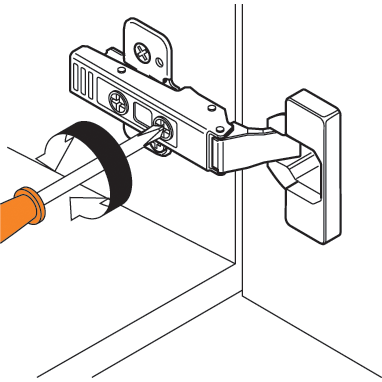

Built on the proven CLIP top platform with knock-in steel boss mounting, the 170° hinge features spring-assisted closing and three-dimensional adjustment for precise door alignment: ±2 mm side and +3/−2 mm depth adjustment with convenient spiral screw.
For soft-close capability, pair with an external BLUMOTION cylinder (sold separately). The hinge is Nickel plated for lasting corrosion resistance and comes in packaging of 125 pieces.
Technical Specifications
| Opening Angle | 170° |
| Closing Mechanism | Spring Closing |
| Cup Diameter | 35 mm |
| Drilling Depth | 13 mm |
| Door Position | Overlay (Full Overlay) |
| Boss Assembly | Knock-in (Steel Boss) |
| Adjustment Range | ±2 mm side / +3/−2 mm depth |
| Finish | Nickel Plated |
| Soft-Close | Compatible with external BLUMOTION cylinder (sold separately) |
Applications

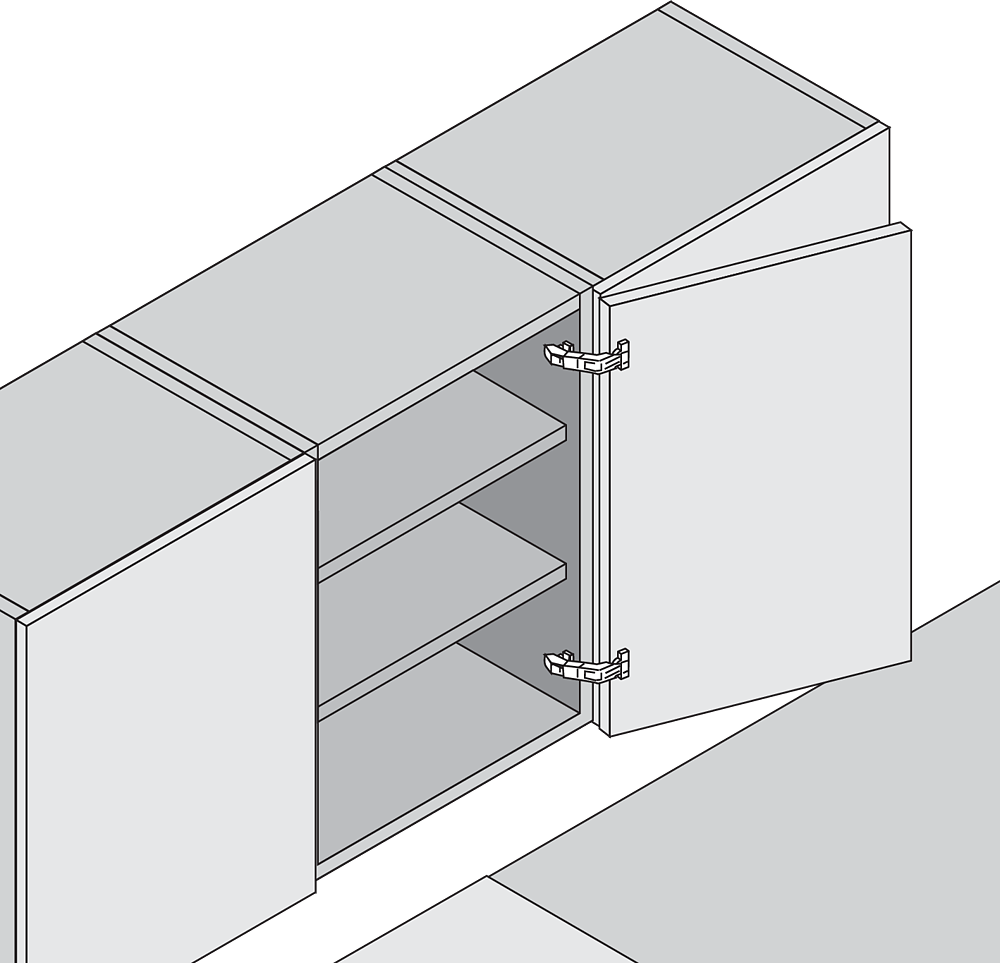

Ideal for pantry cabinets, tall storage units, corner cabinets, and any frameless cabinet application where maximum door opening is required. The 170° opening angle provides unobstructed access to the full cabinet interior, making it perfect for pull-out systems and internal fittings.
Compatible Products
Specifications
| Brand | Blum |
| Fixing Type | Dowel |
