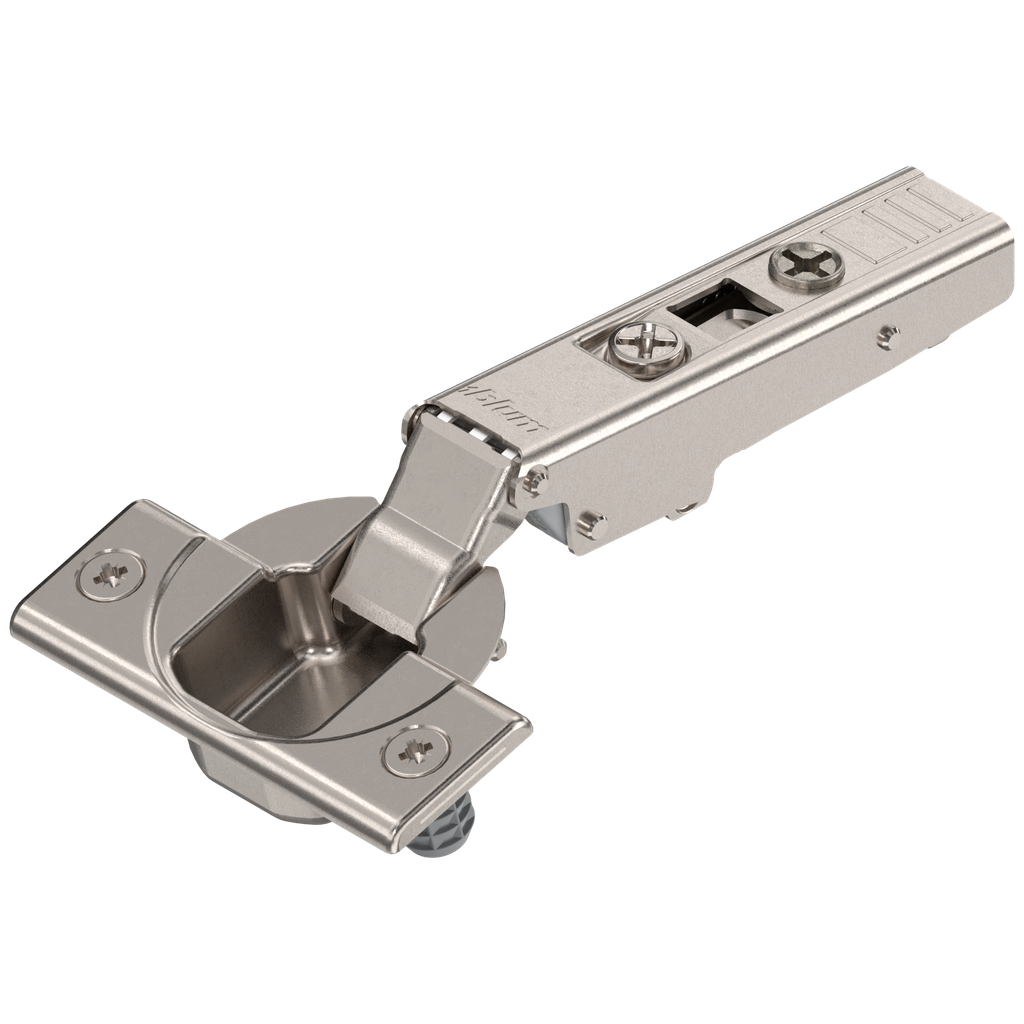

The Blum CLIP top 110° hinge delivers precision engineering for frameless cabinet construction. Available in both Free Swing (70T series) and Spring Closing (71T series) mechanisms, this versatile hinge offers the ideal solution for every application—with or without integrated soft-close damping.

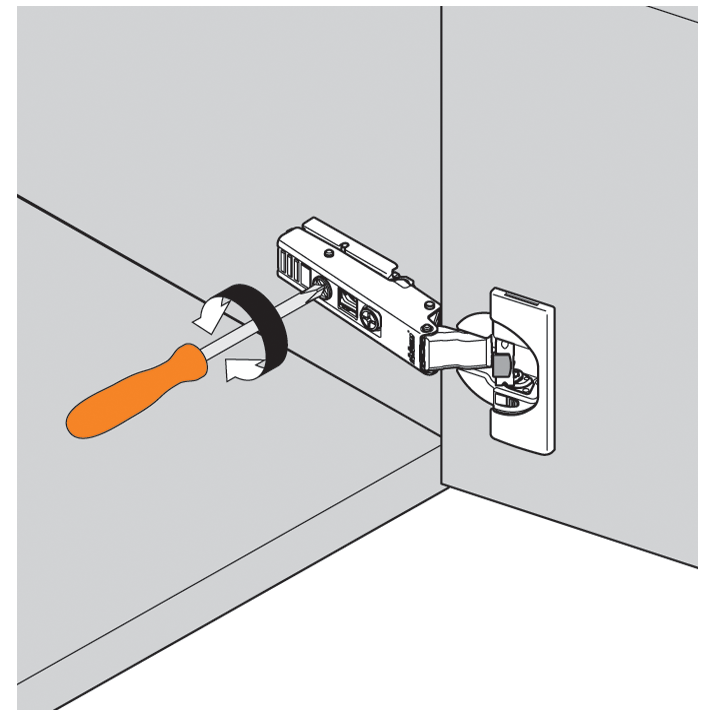

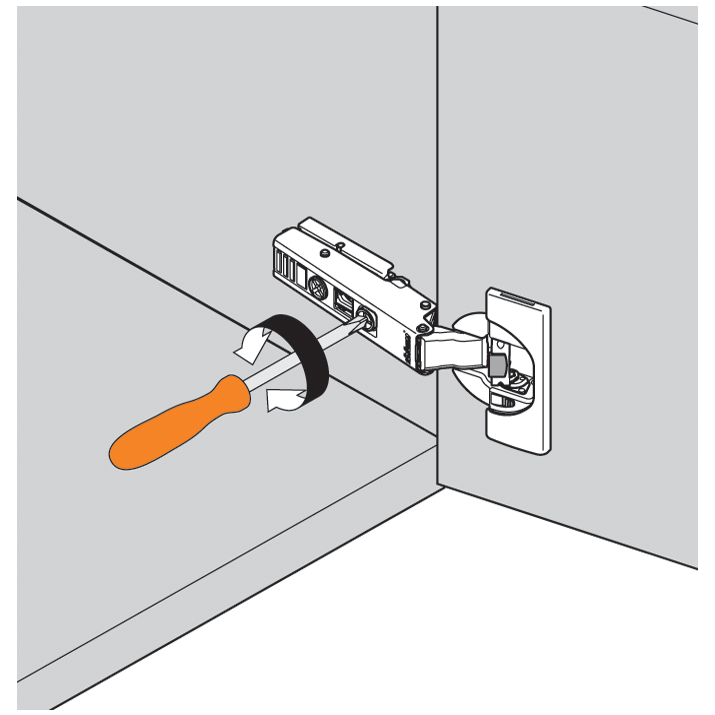

The proven CLIP top system features tool-free mounting with the patented INSERTA and EXPANDO fixing options, alongside traditional screw-on and dowel mounting. Three-dimensional adjustment ensures perfect door alignment every time: +/–2 mm side, +/–2 mm height, and +/–0.8 mm depth adjustment.
For soft-close capability, pair with an external BLUMOTION cylinder (sold separately) or upgrade to the CLIP top BLUMOTION integrated hinge. All variants are Nickel plated for lasting corrosion resistance.
Technical Specifications
| Opening Angle | 110° |
| Closing Mechanism | Free Swing (70T) / Spring Closing (71T) |
| Cup Diameter | 35 mm |
| Drilling Depth | 13 mm |
| Door Positions | Full Overlay, Half Overlay, Inset |
| Fixing Types | Screw-On, Dowel (EXPANDO), INSERTA (tool-free) |
| Adjustment Range | ±2 mm side / ±2 mm height / +0.8 mm depth |
| Finish | Nickel Plated |
| Soft-Close | Compatible with external BLUMOTION cylinder (sold separately) |
Applications
Ideal for frameless (face frame with adapter) kitchen cabinets, bathroom vanities, closet systems, office furniture, and all residential or commercial cabinetry requiring a reliable 110° concealed hinge. Free Swing variants are perfect for lift systems and special applications where spring resistance is not desired.
Compatible Products
📦 Ships from Mississauga, ON • 📞 1-800-PACO • ✅ Authorized Blum Distributor
Specifications
| Fixing Type | Dowel, Screw-On, Inserta |
| Closing Mechanism | Spring Closing, Free Swing |
| Door Position | Full Overlay, Half Overlay, Inset |
| Brand | Blum |
